WHERE DO I START?

Most people have a kitchen plan in mind, either replacing an existing kitchen as it is or have had a
plan done at a high street retailer that can be used to purchase a kitchen online. Our kitchens are all
standard sizes and therefore fit standard appliances and kitchen heights. If you are confident then
you can use a free online kitchen planning tool or simply draw the kitchen plan out on paper, it is
fairly easy once the following considerations have been met;


PLUMBING;

Sink base units, washing machines and dishwashers need to be positioned where water inlet and
waste pipes are so if already installed this is a good place to start the plan

Sink Base Units-  Whether you want an undermount sink (pictured below) or an overmount sink a
standard base unit is all that is required, you can use any size as long as the sink width will fit inside
the chosen unit as the top is open for this reason on standard base units and all base units we sell
have a void at the back for easy storage of pipes and utilities;

For example if you want to use an undermount sink that is 450mm wide you can choose the 500 or
600 base unit or you can choose a double 1000 or 1200 unit and position the sink in either side or
the middle. As the base units are solid wood the unit can be easily routed out for sinks that are large
and don’t quite sit inside the top frame.

Belfast Sink Units– We do a 600mm wide Belfast sink unit with doors that can be purchased for
those wanting this type of sink;

Dishwasher – You can either leave a gap for a freestanding dishwasher or simply purchase a
standard door front for an integrated dishwasher, most dishwashers are 600 wide as standard or 450
wide for a slimline version and they sit directly on the floor. The plinth will then cover the feet of the
dishwasher and the handle would be fitted in the centre for an integrated dishwasher;

Washing Machine - You can either leave a gap for a freestanding washing machine or simply
purchase a standard door front for integrated washing machines, most are 600 wide as standard and
they sit directly on the floor. The plinth will then cover the feet of the washer and the handle would
be fitted to match the rest of the kitchen cupboards;


GAS OR ELECTRIC POINTS;

The next consideration is where are the gas or electric points for oven and/or hob as this will
determine where you will require housing units for ovens and hobs;

Free standing oven – This will just stand on the floor between units so simply factor the width of the
oven into the plan

Built Under Oven – If you want your oven under the counter top inside a unit you will need an oven
unit which comes at 600mm wide to accommodate most standard ovens. The back of the unit is
open which is essential for air flow and cable and pipe access;

Depending on the height of the oven you can use a filler piece of wood to cover any gaps in both
built under and integrated ovens, this can be made from excess plinth, and end panel or a door, the
one below was made from part of a drawer;

Integrated oven – These can be single or double and will fit inside the 600 wide full height oven
housing units that come as a single or double oven option, the back is open at the oven part for air
circulation and pipe access

Hobs – Gas or electric hobs are generally 600 or 900 wide and therefore would sit in a standard base
until of the correct size, some people opt for drawer units to keep pans in underneath hobs but a
normal base unit can be used - As the base units are solid wood the unit can be easily routed out for
hobs that are large and don’t quite sit inside the top frame.


FRIDGES AND FREEZERS;

You can either leave a gap for a freestanding undercounter fridge or freezer or purchase a
standard door front for undercounter integrated fridge or freezer, most are 600 wide as standard and they sit
directly on the floor. The plinth will then cover the feet and the handle would be fitted to match the
rest of the kitchen cupboards. For full height free standing fridge freezers you can leave a gap
or for integrated full height fridge freezers you stand them inside a full height unit – see FULL HEIGHT UNITS
BELOW

After these considerations you just need to fill in the spaces with a range of base units and or
drawer units.


BASE UNITS;

They start at 150mm as an open unit, a towel rail or pull out unit can be fitted in here and they make
a great filler piece;

A wine rack is the same size and again makes a nice filler item;

A large 1200 unit is cheaper to buy than 2 x 600 units so you can think about this type of
combination, or a 1000 unit rather than 2 x 500 units or you may prefer to go for lots of smaller
units. The larger units have a piece of wood so there is no gap when the doors are fitted as a 1200
unit would require 2 x 600 doors;

You will see that the tops of most base units are open as this allows sinks or hobs to be easily fitted
into these units, a worktop will sit on top of the frame. There is also a gap at the back of each base
unit for cables and pipes.

Corner Base Units - We do one corner base unit which comes with a filler piece to fit to the doors which is angled and
fills the gap when closed but also allows for opening of the doors, this unit is open with no shelf as
racks or carousels can be fitted inside to make the most of the huge storage space this unit offers.

Open Wall and Base Units - These have a top on then as they are designed to be open with a shelf and no door and are nice to
display glassware, plates or ornaments – they are not for use with appliances.

Drawer Base Units - These are available in 3 widths, drawers are soft close and you will require drawer fronts, as with all
base units they can be easily routed out for larger hobs

Wall Units - They start at 150mm as an open unit and they make a great filler piece, we also do open wall shelves
for glassware or display options as well as a 600 plate rack and a 300 end display unit;

Spice Racks - We do 3 sizes of spice rack which will fit under your wall unit as a nice space for keeping spices, you
can sit these on a worktop or you can suspend above an upstand depending on the height of your
kitchen.

Full Height Units - We do full height units to house single ovens, double ovens and Fridge freezers. We also do a 600
larder unit for that wardrobe effect when you bank the units together. Doors for these units are in
the Mango Doors section of the website and we do a 50:50 or 60:40 split for the fridge freezers and
the larder unit


MANGO WOOD DOORS;

Simply buy the door to fit you base or wall unit, a 600 door will fit a 600 base or wall unit. The doors
are a few mm smaller than the unit size to allow them to open and close so don’t worry about the
dimensions listed just select the appropriate door for the unit – for 1000 units select 2 x 500 doors etc.
Drawer fronts are also available in this section.


MANGO WOOD ACCESSORIES;

You can find plinth, pelmets, end panels and shelves here;

Plinth - This is an essential part of the kitchen finish and hides the underneath of the units, some
people opt for ornate feet and leave the gap open with no plinth but most use plinth to cover the
standard plastic kitchen feet and unsightly pipes or areas without flooring under units – most feet come
with plinth clips (see the end of this page)

End Panels - Most people use end panels to hide the edges of doors and appliances and give a neat finish but they
are optional and available for base and wall units, there are some visuals below which will show you
both options;

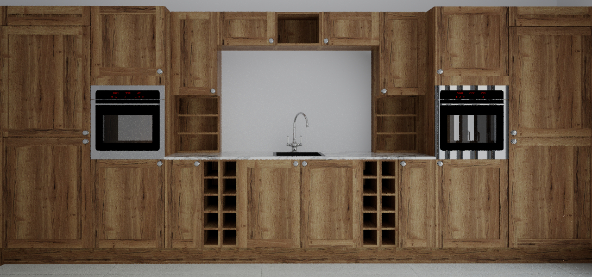

TALL END PANELS ON BOTH SIDES;

NO END PANELS;

BASE UNIT END PANEL;

Shelves - These can be cut to size and can be used to make a nice feature

PELMET AND CORNICE CAN BE USED TO MAKE A FEATURE ABOVE AND BELOW WALL UNITS;


Kitchen Island - A kitchen island can be made from base and or wall units sitting on feet on the floor with plinth just
as the base units in the kitchen. Simply create the size you want then place units on their own or
back to back and use base panels to cover joins or edges. Your worktop can create an area for bar
stools and below are a number of different variations created with base and wall units;


Please Note - We sell everything wooden – You will need to buy kitchen feet, shelf clips, handles and
and hinges all of your choosing and they can be bought online or at DIY stores cheaply.

*As the units are all 100% solid wood they can contract and expand and will react to the environment so it is essential that you leave 'filler gaps' if you are planning a space that is fixed between two walls, you will need to allow some expansion room as a run of 4 x 600 units may measure 2500mm rather than 2400mm when fitted so by allowing a small gap you will ensure that the units fit as they should and a filler piece of wood or end panel can be used to cover any small gaps that are left.

Standard feet are plastic and sit at 150MM high but you can opt for decorative feet and show under
the units with no plinth, hinges can be soft closes if you wish and the only thing to remember is that
they need to be suitable for 30mm doors as these are thicker than standard doors;
